Manufactured to the highest quality standards, G2™ Series 1/4 turn stops offer reliable performance, superior quality and an exceptional value. These stops provide, fast, convenient and reliable 1/4 turn operation with positive shut-off.

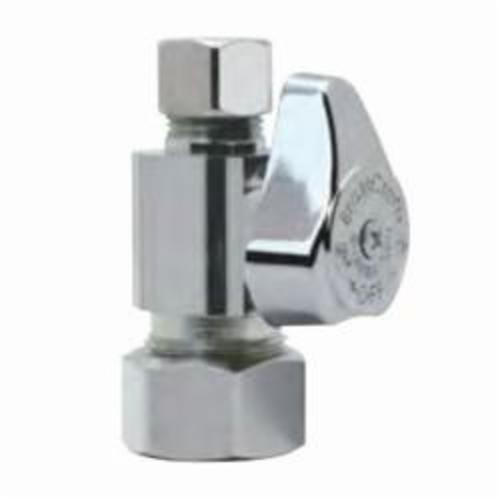

BrassCraft® Straight Stop, 1/4 Turn Lead Free, Series: G2™, 1/2 x 3/8 in Nominal Size, Compression, 125 psi, Media: Water, Brass Body, C36000 Brass Compression Sleeve Trim, Santoprene Stem Barrel/Rubber O-Ring, 40 to 140 deg F, 1.03 x 2.28 in, Domestic
Body Material |
: |
Brass |

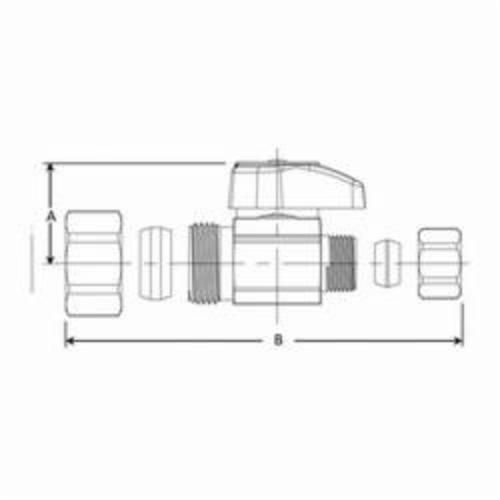

Dimensions |
: |
1.03 x 2.28 in |
Domestic/Import |
: |
Domestic |
End Style |
: |
Compression |
Media |
: |
Water |
Nominal Size |
: |
1/2 x 3/8 in |
Pressure Rating |
: |
125 psi |
Series |
: |
G2™ |
Softgoods Material |
: |
Santoprene Stem Barrel/Rubber O-Ring |
Temperature Rating |
: |
40 to 140 deg F |
Trim Material |
: |
C36000 Brass Compression Sleeve |
Type |
: |
1/4 Turn Lead Free |
- One-piece shut-off mechanism provides smooth on-off operation without freeze ups even after long periods of non-use
- Positive 1/4 turn shut-off
- Full flow operation with no waterway obstructions
- Corrosion-resistant handle is plated in an attractive chrome plated finish
- Machined one-piece brass body provides strength, durability and long-lasting performance
- Easy-to-remove handle with screw attachment protects against accidental operation during rough-in
- 100 percent leak tested
- Not intended for recirculating water systems
- Push connect technology
- Installation ready with pre-assembled tube insert
- No special installation tools required
- Chrome plated finish
- For use with Copper, PEX and CPVC
-
