Designed for performance, the Classic Bath Collection provides smart technology that will stand the test of time.

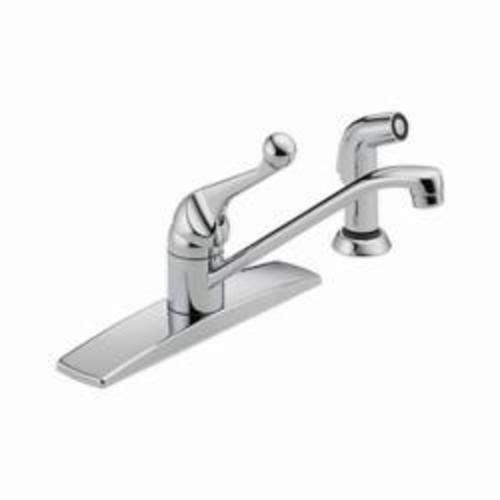

DELTA® Kitchen Faucet, Classic Collection, 1.8 gpm, 8 in Center Distance, Swivel Spout, 8 in Spout Reach, 7-3/16 in Spout Height, 45 in Hose, Lever Handle, 1 Handles, 4 Faucet Holes, 1/2 in Connection, IPS Connection, Spray Pattern: Full Body, 1 Spray Functions, 1 in Maximum Deck Thickness, Deck Mount, Ball Valve/Cartridge Type, Brass, Chrome Plated, Domestic
| Center Distance | : | 8 in |
| Collection | : | Classic |
| Connection Size | : | 1/2 in |
| Connection Type | : | IPS |
| Domestic/Import | : | Domestic |
| Finish/Color | : | Chrome Plated |
| Flow Rate | : | 1.8 gpm |
| Handle Style | : | Lever |
| Hose Size | : | 45 in |
| Material | : | Brass |
| Maximum Deck Thickness | : | 1 in |
| Mounting Type | : | Deck |
| Number of Faucet Holes | : | 4 |
| Number of Handles | : | 1 |
| Number of Spray Functions | : | 1 |
| Spout Height | : | 7-3/16 in |
| Spout Reach | : | 8 in |
| Spout Type | : | Swivel |
| Spray Pattern | : | Full Body |
| Valve/Cartridge Type | : | Ball |
| Warranty | : | Limited Lifetime |
- Includes matching finish side spray
- 4-hole 6 or 8 in installation
- 1 in maximum deck thickness
- For an additional 1 in installation deck thickness order RP30393
- Standard spout swivels 360 deg for complete sink access
- Control handle shall return to neutral position when faucet is turned off
- Control mechanism shall be of the rotating stainless steel ball type with replaceable non-metallic seats operating in stainless steel lined sockets
- Model 400 series with spray attachment has anti- siphon device as integral part of valve body
- Model 400 series without dispenser can be field converted from 8 to 6 in centers
- 3/8 in O.D. copper tube inlets - 10 in (854 mm) long
- Models supplied with 1/2-14 NPSM adapters
- 1.8 gpm at 60 psi
Instruction/Installation Sheet
