Apollo™ 61LF10301

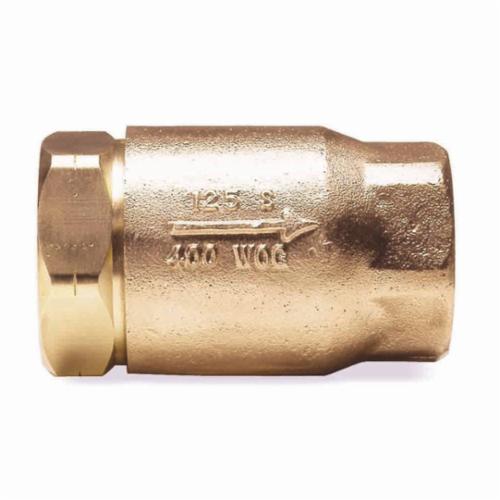

Apollo™ Ball Cone® 61LF Lead-Free Standard In-Line Check Valve, 1/2 in FNPT, Bronze
The Apollo® CVB-LF (61LF Series) Ball Cone® check valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM grade Lead Free* materials. They are well-suited for a broad range of applications, including saturated steam and chemical service. They may be installed in both horizontal and vertical orientation with upward flow.
Apollo™ Ball Cone® In-Line Check Valve, Standard, Series: 61LF, 1/2 in Nominal, FNPT, 400 psi Pressure Rating, 350 deg F Temperature, 2.31 in Inlet to Outlet Length, Bronze Body, Brass Stem Trim, Softgoods Material: EPDM Soft Seat
| Body Material | : | Bronze |
| End Style | : | FNPT |
| Inlet to Outlet Length | : | 2.31 in |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 400 psi |
| Series | : | 61LF |
| Softgoods Material | : | EPDM Soft Seat |
| Temperature Rating | : | 350 deg F |
| Trim Material | : | Brass Stem |
| Type | : | Standard |
| Warranty | : | 5 Years |
- 1/2 psi standard spring cracking pressure
- Tight shut-off with liquid media
- Straight through flow design efficiency
- 61LF-100 RPTFE ball cone for chemical resistance
- ASTM B16 brass guide
- UNS C27451 lead free brass retainer
- AISI 316 stainless steel spring
- 15% glass filled RPTFE ball cone check
- Lead free: the wetted surfaces of this product shall contain no more than 0.25 percent lead by weighted average
- 125 psi steam
