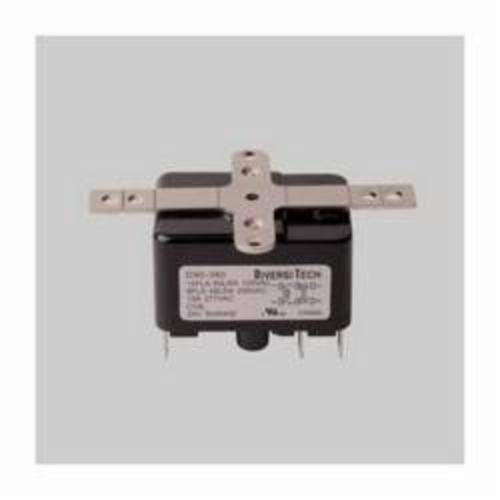

DiversiTech D90-380

Diversitech 9400 General Purpose Relay, 22 A, NO-NC SPST, 24 VAC

  • Manufacturers: DiversiTech
  • Brand Name: DiversiTech
  • Part#: 120089
  • MPN: D90-380
  • UPC: 095247083442
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

This product features quick connect terminals with universal mounting with break-away tabs.

Diversitech Relay, General Purpose, Series: 9400, 125/250 VAC, 22 A, 24 VAC Coil, NO-NC SPST, Quick Connect Terminal, 1 Pole, 1.6 in H x 2.9 in W x 3 in D

Amperage Rating      :      22 A
Coil Voltage      :      24 VAC
Contact Form      :      NO-NC SPST
Dimensions      :      1.6 in H x 2.9 in W x 3 in D
Series      :      9400
Specifications      :      1 Pole
Terminal Type      :      Quick-Connect
Type      :      General Purpose
Voltage Rating      :      125/250 VAC
Warranty      :      1 Year
  • 12 FLA/60 LRA at 125V, 8 FLA/48 LRA at 250V
  • Break-away tabs
  • Universal mount
  • pdfData/Spec Sheet https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/DiversiTech_D90_360_Datasheet.pdf
