White-Rodgers™ 1E78-140

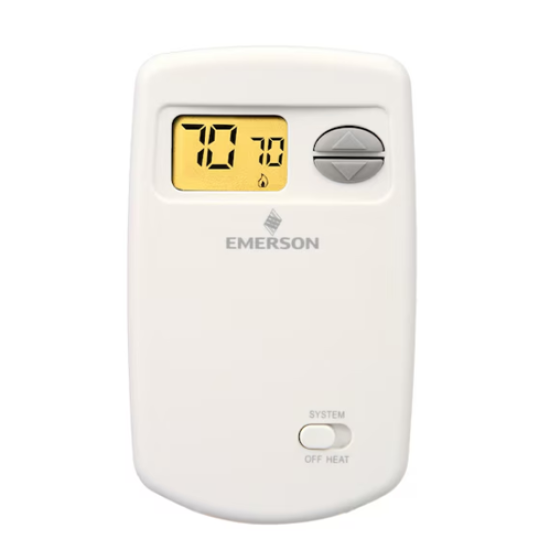

White-Rodgers™ 70 Economy Digital Non-Programmable Thermostat, 45 to 90 deg F Control, Heat Differential, Import
White-Rodgers™ Digital Non-Programmable Thermostat, Economy, Series: 70, 45 to 90 deg F Control Range, Heat Differential, Terminal Designations: RH, W, System Switching: Heat/Off, Fan Switching: Auto-On, 1 Stage, 20 to 30 VAC, 90% Non-Condensing Humidity, 1.2 in Lighted Display, Battery, Vertical Mount, White, 5-5/16 in H x 3-3/16 in W x 1-1/8 in D, Import
| Color | : | White |
| Control Range | : | 45 to 90 deg F |
| Differential | : | Heat |
| Dimensions | : | 5-5/16 in H x 3-3/16 in W x 1-1/8 in D |
| Display | : | 1.2 in Lighted |
| Domestic/Import | : | Import |
| Fan Switching | : | Auto-On |
| Humidity Range | : | 90% Non-Condensing |
| Includes | : | B/O Terminals |
| Mounting Type | : | Vertical |
| Number of Stages | : | 1 |
| Power Source | : | Battery |
| Series | : | 70 |
| System Switching | : | Heat/Off |
| Terminal Designations | : | RH, W |
| Type | : | Economy |
| Voltage Rating | : | 20 to 30 VAC |
| Warranty | : | 5 Years |
- Fossil fuel or electric heat compatible
- Large LCD with backlight
- Selectable celsius or fahrenheit temperature display
- Electronic accuracy
- 32 to 105 deg F ambient
- 32 to 99 deg F display
- Millivolt compatible
- For gas oils, electric and heat pumps application
